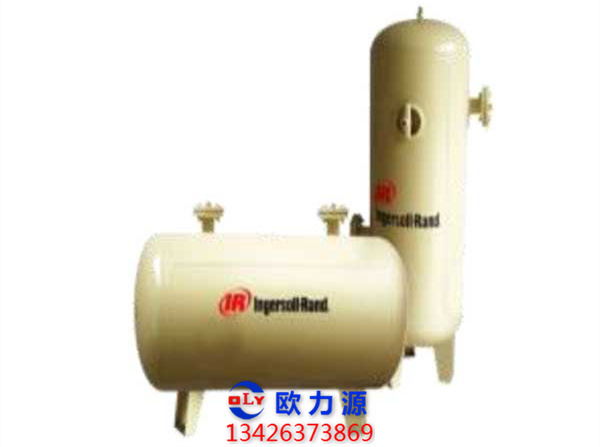

储气罐
描述：
-标准储气罐供货范围：
-使压缩空气输出平稳，起到缓冲作用
-收集空气冷却后产生的水分，起到除水的作用
-可当气包使用，保证用气高峰时的大气量需求
-高压储气罐最高压力可达45bar
-标准储气罐供货范围：
-使压缩空气输出平稳，起到缓冲作用
-收集空气冷却后产生的水分，起到除水的作用
-可当气包使用，保证用气高峰时的大气量需求
-高压储气罐最高压力可达45bar
| 型号 | 图号 | 容量m³ | 压力MPa | 型号 | 图号 | 容量 | 压力 | |
| C-0.3/0.8 | 42899203 | 0.3 | 0.8 | C-6.0/0.8 | 42899112 | 6.0 | 0.8 | |
| C-0.3/1.0 | 42899195 | 0.3 | 1.0 | C-6.0/1.0 | 42899104 | 6.0 | 1.0 | |
| C-0.3/1.3 | 42899187 | 0.3 | 1.3 | C-6.0/1.3 | 15444904 | 6.0 | 1.3 | |
| C-0.5/0.8 | 42858928 | 0.5 | 0.8 | C-8.0/0.8 | 42859017 | 8.0 | 0.8 | |
| C-0.5/1.0 | 42858936 | 0.5 | 1.0 | C-8.0/1.0 | 42859025 | 8.0 | 1.0 | |
| C-0.5/1.3 | 42899146 | 0.5 | 1.3 | C-8.0/1.3 | 15444912 | 8.0 | 1.3 | |
| C-0.6/0.8 | 42899138 | 0.6 | 0.8 | C-10.0/0.8 | 42898999 | 10.0 | 0.8 | |
| C-0.6/1.0 | 42899120 | 0.6 | 1.0 | C-10.0/1.0 | 42898981 | 10.0 | 1.0 | |
| C-0.6/1.3 | 42899260 | 0.6 | 1.3 | C-10.0/1.3 | 15444920 | 10.0 | 1.3 | |
| C-1.0/0.8 | 42899252 | 1.0 | 0.8 | C-12.0/0.8 | 15486822 | 12.0 | 0.8 | |
| C-1.0/1.0 | 42899245 | 1.0 | 1.0 | C-12.0/1.0 | 15486830 | 12.0 | 1.0 | |
| C-1.0/1.3 | 42858944 | 1.0 | 1.3 | C-12.0/1.3 | 15486848 | 12.0 | 1.3 | |
| C-1.5/0.8 | 42858951 | 1.5 | 0.8 | C-15.0/0.8 | 15441645 | 15.0 | 0.8 | |
| C-1.5/1.0 | 42858381 | 1.5 | 1.0 | C-15.0/1.0 | 15444144 | 15.0 | 1.0 | |
| C-1.5/1.3 | 42899237 | 1.5 | 1.3 | C-15.0/1.3 | 15444979 | 15.0 | 1.3 | |
| C-2.0/0.8 | 42899229 | 2.0 | 0.8 | C-20.0/0.8 | 42899278 | 20.0 | 0.8 | |
| C-2.0/1.0 | 42899211 | 2.0 | 1.0 | C-20.0/1.0 | 15466006 | 20.0 | 1.0 | |
| C-2.0/1.3 | 15444888 | 2.0 | 1.3 | C-20.0/1.3 | 80064801 | 20.0 | 1.3 | |
| C-2.5/0.8 | 15444151 | 2.5 | 0.8 | C-25.0/0.8 | 80060221 | 25.0 | 0.8 | |
| C-2.5/1.0 | 15444896 | 2.5 | 1.0 | C-25.0/1.0 | 15465982 | 25.0 | 1.0 | |
| C-2.5/1.3 | 42858969 | 2.5 | 1.3 | C-25.0/1.3 | 15444953 | 25.0 | 1.3 | |
| C-3.0/0.8 | 42858977 | 3.0 | 0.8 | C-30.0/0.8 | 15444961 | 30.0 | 0.8 | |
| C-3.0/1.0 | 42858958 | 3.0 | 1.0 | C-30.0/1.0 | 15465990 | 30.0 | 1.0 | |
| C-3.0/1.3 | 42858985 | 3.0 | 1.3 | C-30.0/1.3 | 15444987 | 30.0 | 1.3 | |
| C-4.0/0.8 | 42899179 | 4.0 | 0.8 | C-40.0/0.8 | 15470222 | 40.0 | 0.8 | |
| C-4.0/1.0 | 15471147 | 4.0 | 1.0 | C-40.0/1.0 | 15470230 | 40.0 | 1.0 | |
| C-4.0/1.3 | 42899153 | 4.0 | 1.3 | C-40.0/1.3 | 15470248 | 40.0 | 1.3 | |
| C-5.0/0.8 | 42858993 | 5.0 | 0.8 | C-50.0/0.8 | 15454879 | 50.0 | 0.8 | |
| C-5.0/1.0 | 42859009 | 5.0 | 1.0 | C-50.0/1.0 | 15454887 | 50.0 | 1.0 | |
| C-5.0/1.3 | 42899286 | 5.0 | 1.3 | C-50.0/1.3 | 15454895 | 50.0 | 1.3 |
| 型号 | 图号 | 容量m³ | 压力MPa | 型号 | 图号 | 容量 | 压力 | |
| C-0.3/1.6 | 15466428 | 0.3 | 1.6 | C-2.0/3.0 | 15466741 | 2.0 | 3.0 | |
| C-0.3/2.5 | 15466436 | 0.3 | 2.5 | C-2.0/4.0 | 15466758 | 2.0 | 4.0 | |
| C-0.3/3.0 | 15466444 | 0.3 | 3.0 | C-2.0/4.5 | 15447402 | 2.0 | 4.5 | |
| C-0.3/3.5 | 15466451 | 0.3 | 3.5 | C-2.5/1.6 | 15466790 | 2.5 | 1.6 | |
| C-0.3/4.0 | 15466469 | 0.3 | 4.0 | C-2.5/2.5 | 15466808 | 2.5 | 2.5 | |
| C-0.5/1.6 | 15466501 | 0.5 | 1.6 | C-2.5/3.0 | 15466816 | 2.5 | 3.0 | |
| C-0.5/2.5 | 15466519 | 0.5 | 2.5 | C-2.5/4.0 | 15445141 | 2.5 | 4.0 | |
| C-0.5/3.0 | 15466527 | 0.5 | 3.0 | C-3.0/1.6 | 15466824 | 3.0 | 1.6 | |
| C-0.5/4.0 | 15445083 | 0.5 | 4.0 | C-3.0/2.5 | 15466832 | 3.0 | 2.5 | |
| C-0.6/1.6 | 15466535 | 0.6 | 1.6 | C-3.0/3.0 | 15441835 | 3.0 | 3.0 | |
| C-0.6/2.5 | 15466543 | 0.6 | 2.5 | C-3.0/4.0 | 15441850 | 3.0 | 4.0 | |
| C-0.6/3.0 | 15466550 | 0.6 | 3.0 | C-4.0/1.6 | 15441892 | 4.0 | 1.6 | |
| C-0.6/4.0 | 15466568 | 0.6 | 4.0 | C-4.0/2.5 | 15445182 | 4.0 | 2.5 | |
| C-0.6/4.5 | 15447345 | 0.6 | 4.5 | C-4.0/3.0 | 15445190 | 4.0 | 3.0 | |
| C-0.6/6.0 | 15447352 | 0.6 | 6.0 | C-5.0/1.6 | 15441900 | 5.0 | 1.6 | |
| C-1.0/1.6 | 15466626 | 1.0 | 1.6 | C-5.0/2.5 | 15445208 | 5.0 | 2.5 | |
| C-1.0/2.5 | 15466634 | 1.0 | 2.5 | C-5.0/3.0 | 15445216 | 5.0 | 3.0 | |
| C-1.0/3.0 | 15466642 | 1.0 | 3.0 | C-6.0/1.6 | 15441918 | 6.0 | 1.6 | |
| C-1.0/4.0 | 15466659 | 1.0 | 4.0 | C-6.0/2.5 | 15445224 | 6.0 | 2.5 | |
| C-1.0/4.5 | 15447360 | 1.0 | 4.5 | C-6.0/3.0 | 15441926 | 6.0 | 3.0 | |
| C-1.0/5.0 | 15447378 | 1.0 | 5.0 | C-8.0/1.6 | 15445232 | 8.0 | 1.6 | |
| C-1.0/6.0 | 15447386 | 1.0 | 6.0 | C-8.0/2.5 | 15445240 | 8.0 | 2.5 | |
| C-1.5/1.6 | 15466691 | 1.5 | 1.6 | C-8.0/3.0 | 15445257 | 8.0 | 3.0 | |
| C-1.5/2.5 | 15445091 | 1.5 | 2.5 | C-10.0/1.6 | 15445109 | 10.0 | 1.6 | |
| C-1.5/3.0 | 15466709 | 1.5 | 3.0 | C-10.0/2.5 | 15445117 | 10.0 | 2.5 | |
| C-1.5/4.0 | 15466717 | 1.5 | 4.0 | C-15.0/1.6 | 15445133 | 15.0 | 1.6 | |
| C-1.5/4.5 | 15447394 | 1.5 | 4.5 | C-20.0/1.6 | 15445158 | 20.0 | 1.6 | |
| C-2.0/1.6 | 15466725 | 2.0 | 1.6 | C-25.0/1.6 | 15445166 | 25.0 | 1.6 | |
| C-2.0/2.5 | 15466733 | 2.0 | 2.5 | C-30.0/1.6 | 15445174 | 30.0 | 1.6 |
| 型号 | 图号 | 容量m³ | 压力MPa | 型号 | 图号 | 容量 | 压力 | |
| C-0.3/0.8 | 15470362 | 0.3 | 0.8 | C-3.0/1.3 | 80065261 | 3.0 | 1.3 | |
| C-0.3/1.0 | 80065071 | 0.3 | 1.0 | C-3.0/1.6 | 80065279 | 3.0 | 1.6 | |
| C-0.3/1.3 | 80065089 | 0.3 | 1.3 | C-4.0/0.8 | 15470412 | 4.0 | 0.8 | |
| C-0.3/1.6 | 80065097 | 0.3 | 1.6 | C-4.0/1.0 | 80065287 | 4.0 | 1.0 | |
| C-0.6/0.8 | 15470370 | 0.6 | 0.8 | C-4.0/1.3 | 80065295 | 4.0 | 1.3 | |
| C-0.6/1.0 | 80065105 | 0.6 | 1.0 | C-4.0/1.6 | 15470420 | 4.0 | 1.6 | |
| C-0.6/1.3 | 80065113 | 0.6 | 1.3 | C-5.0/0.8 | 15470438 | 5.0 | 0.8 | |
| C-0.6/1.6 | 80065121 | 0.6 | 1.6 | C-5.0/1.0 | 80065303 | 5.0 | 1.0 | |
| C-1.0/0.86 | 15444698 | 1.0 | 0.8 | C-5.0/1.3 | 80065311 | 5.0 | 1.3 | |
| C-1.0/1.0 | 80065139 | 1.0 | 1.0 | C-5.0/0.8 | 15470446 | 5.0 | 1.6 | |
| C-1.0/1.3 | 80065147 | 1.0 | 1.3 | C-6.0/1.0 | 15470453 | 6.0 | 0.8 | |
| C-1.0/1.6 | 80065154 | 1.0 | 1.6 | C-6.0/1.3 | 80065329 | 6.0 | 1.0 | |
| C-1.5/0.8 | 15470388 | 1.5 | 0.8 | C-6.0/1.6 | 80065337 | 6.0 | 1.3 | |
| C-1.5/1.0 | 80065162 | 1.5 | 1.0 | C-6.0/1.6 | 15470461 | 6.0 | 1.6 | |
| C-1.5/1.3 | 80065170 | 1.5 | 1.3 | C-8.0/0.8 | 80065345 | 8.0 | 0.8 | |
| C-1.5/1.6 | 80065188 | 1.5 | 1.6 | C-8.0/1.0 | 80065352 | 8.0 | 1.0 | |
| C-2.0/0.8 | 15470396 | 2.0 | 0.8 | C-8.0/1.3 | 80065360 | 8.0 | 1.3 | |
| C-2.0/1.0 | 80065196 | 2.0 | 1.0 | C-8.0/1.6 | 15470479 | 8.0 | 1.6 | |
| C-2.0/1.3 | 80065204 | 2.0 | 1.3 | C-10.0/0.8 | 80065378 | 10..0 | 0.8 | |
| C-2.0/1.6 | 80065212 | 2.0 | 1.6 | C-10.0/1.0 | 80065386 | 10..0 | 1.0 | |
| C-3.0/0.8 | 15470404 | 3.0 | 0.8 | C-10.0/1.3 | 80065394 | 10..0 | 1.3 | |
| C-3.0/1.0 | 80065253 | 3.0 | 1.0 | C-10.0/1.6 | 15470487 | 10..0 | 1.6 |
